Vintage ZIM USSR Mechanical Watch Caliber 2602 Rare Waffle Dial Gold Hands

Vintage ZIM USSR Mechanical Watch Caliber 2602 Rare Waffle Dial Gold Hands Maslennikov Factory 1970s

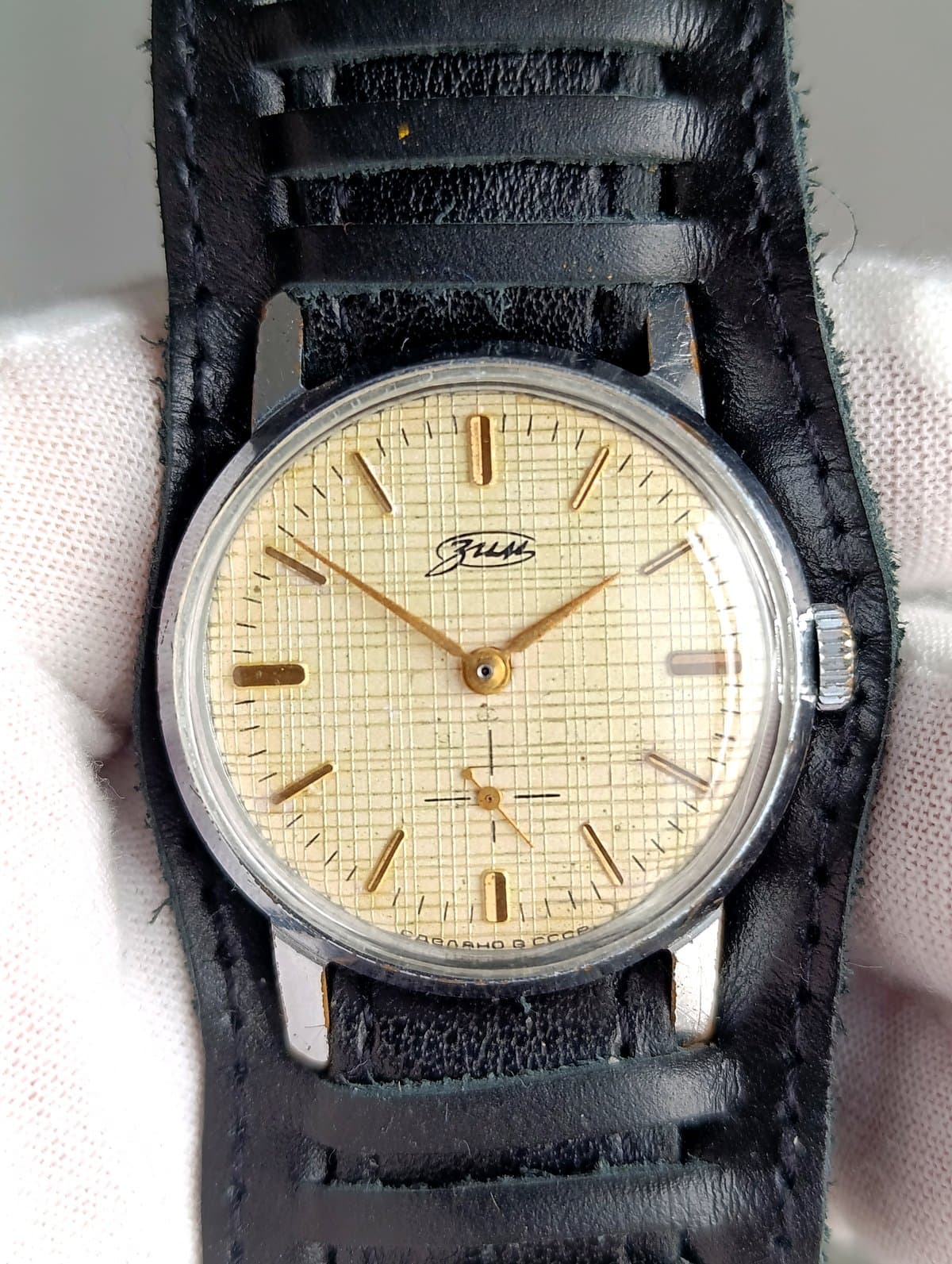

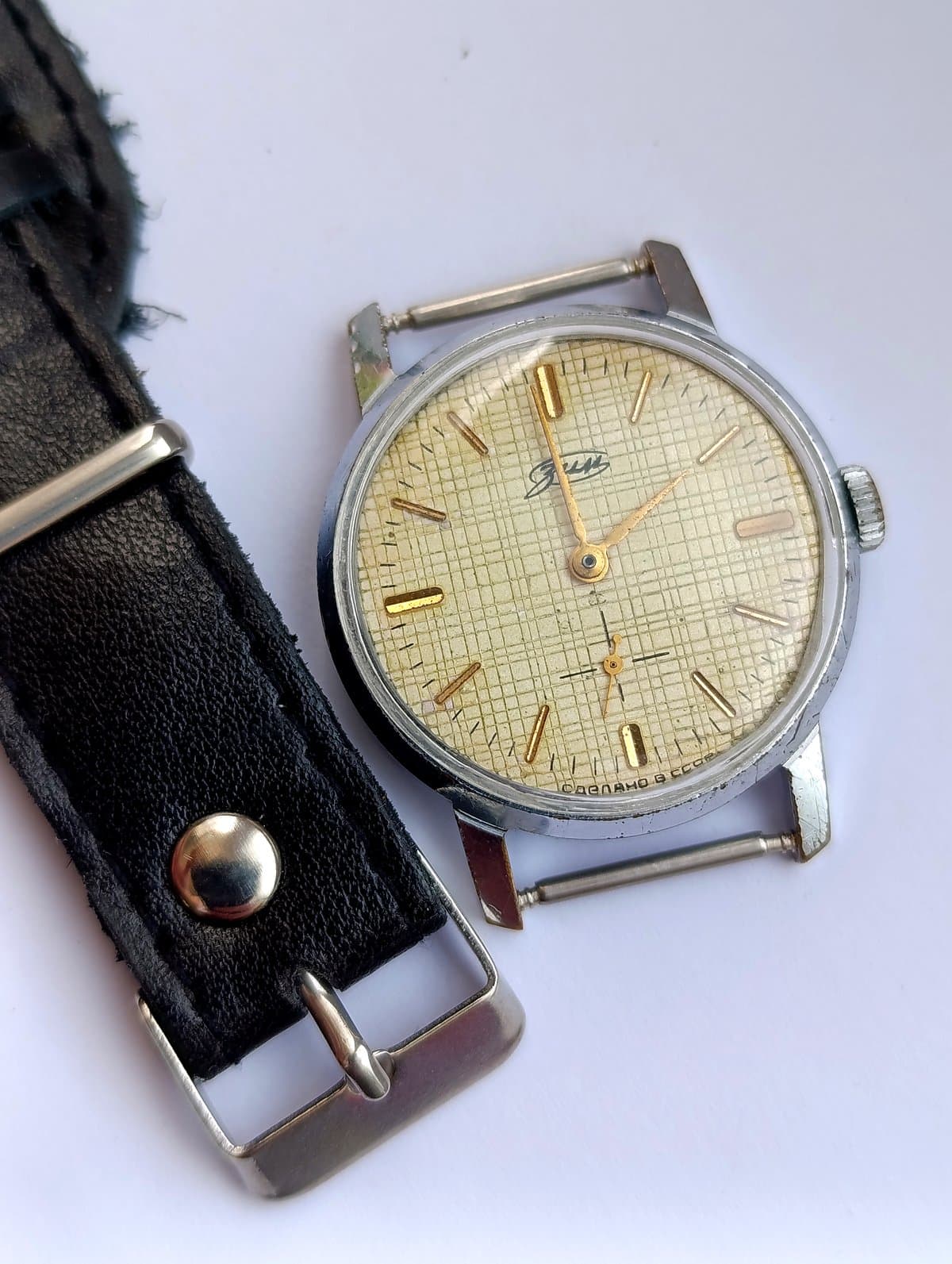

A genuine vintage Soviet mechanical wristwatch produced by the Maslennikov Watch Factory (ZIM) in Penza, USSR. This example is distinguished by its rarely encountered all-over crosshatch-textured dial in aged champagne tone, fitted with fully matching gold-tone baton hands and applied baton hour markers. Powered by the manual-wind caliber 2602, the watch represents a well-preserved example of mid-century Soviet horology from one of the USSR's principal timekeeping manufacturers.

Historical Background

The Maslennikov Watch Factory, known by its Russian acronym ZIM (Завод имени Масленникова), was located in Penza, Russia, and named in honour of the Bolshevik revolutionary Mikhail Semyonovich Maslennikov. Established as a watchmaking enterprise in the late 1940s, the factory became one of the Soviet Union's significant producers of mechanical wristwatches, supplying both the domestic market and, during certain production periods, export markets. The ZIM brand occupied a mid-tier position within the Soviet watchmaking hierarchy, offering mechanical reliability in an accessible format. Caliber 2602 was produced across multiple runs from the late 1950s through the 1970s, appearing in a range of dial configurations. The crosshatch or basketweave-textured dial variant, as found on this example, is among the less common dial treatments associated with this production era and is increasingly sought by collectors of authentic vintage Soviet timepieces.

Technical Specifications

Case

• Shape: Round
• Material: Chrome-plated base metal
• Diameter: 34 x 41mm
• Thickness with glass: 11 mm
• Lug width: 18 mm
• Lug style: Fixed straight lugs, integrated into case body

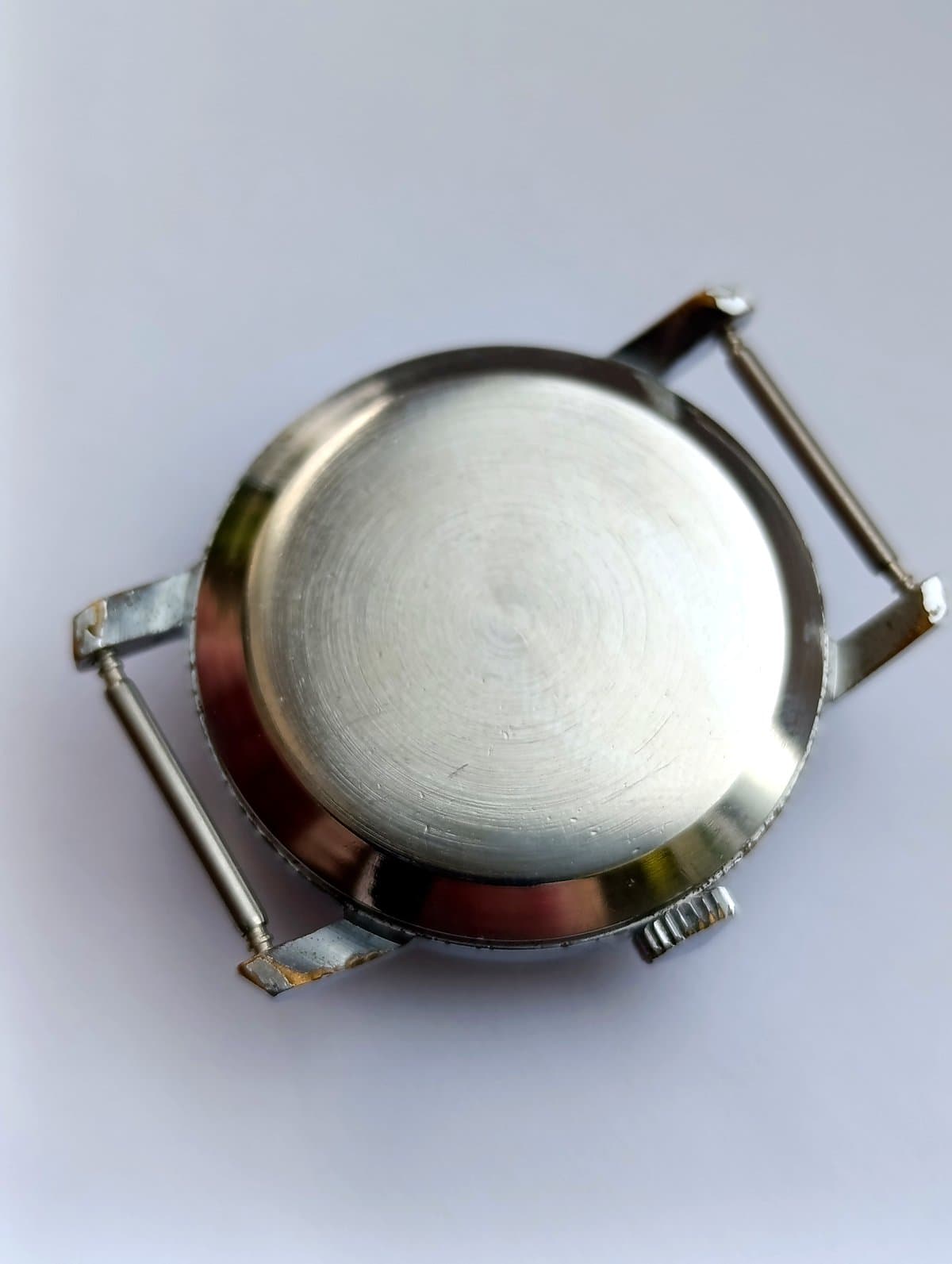

• Caseback: Plain smooth snap-back; no engravings or markings observed

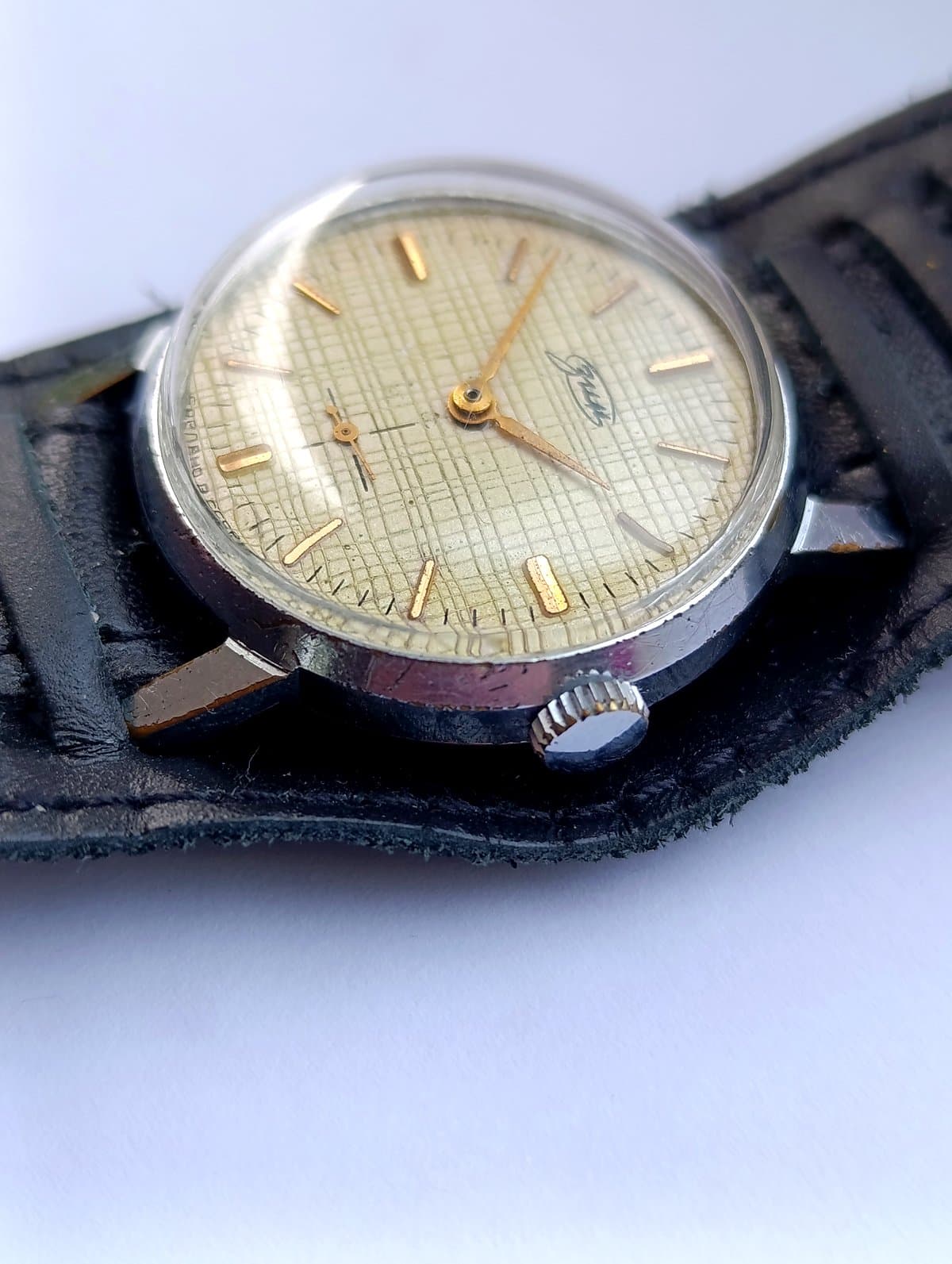

• Crown: Unsigned, knurled, chrome-plated; positioned at 3 o'clock
• Crystal: Acrylic (plexiglass), domed profile; surface shows age-consistent light scratching
• Water resistance: None

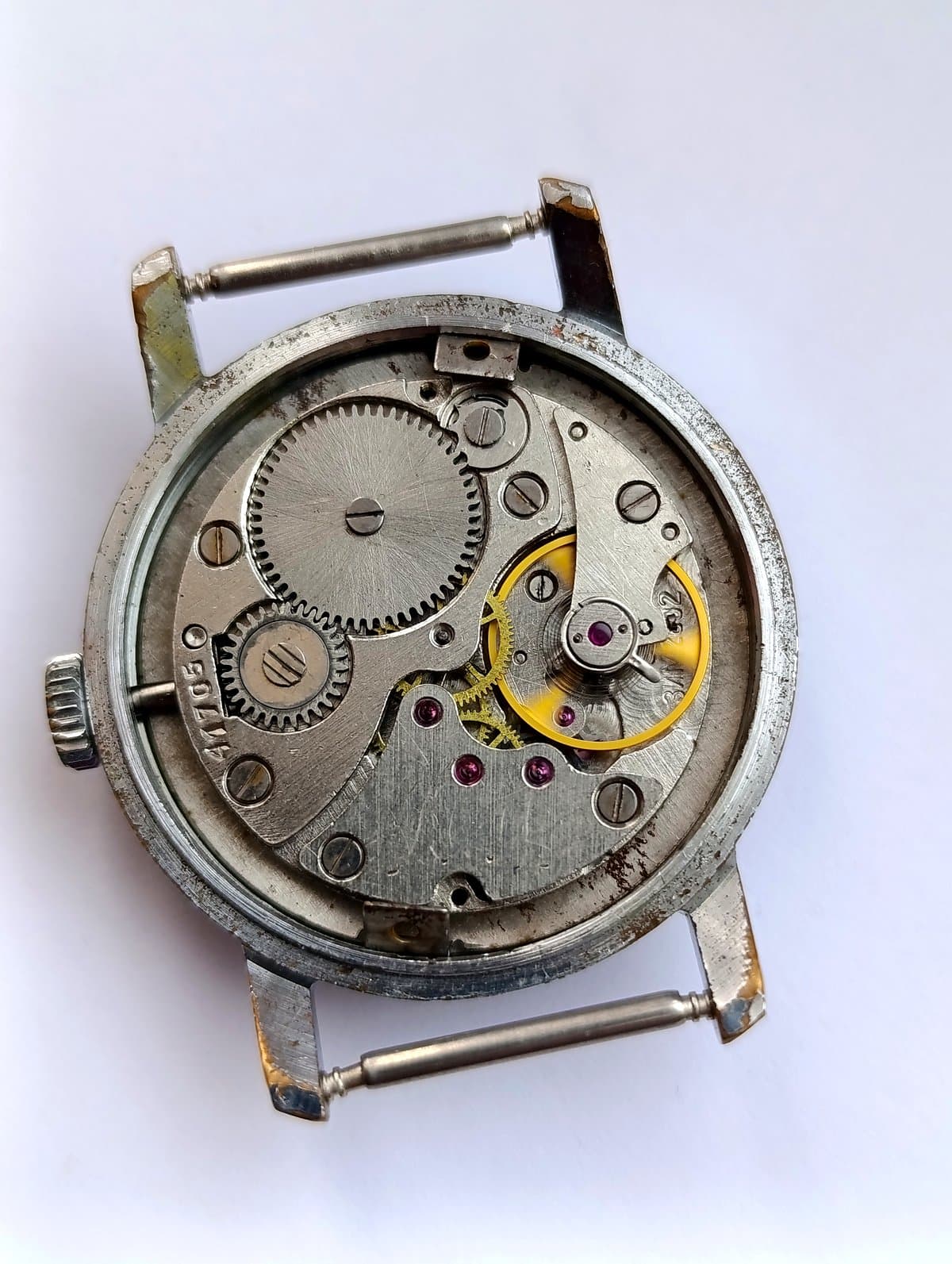

Movement

• Caliber: ZIM 2602
• Manufacturer: Maslennikov Watch Factory (ЗиМ)
• Type: Manual-wind mechanical
• Jewels: 15
• Beat rate: 18,000 A/H (2.5 Hz)
• Power reserve: Approximately 36 hours
• Complications: Small seconds subdial at 6 o'clock
• Shock protection: None
• Winding: Manual, via crown
• Movement condition: Fully serviced by a professional watchmaker on 27 February 2026; worn components replaced with new old stock (NOS) parts; ultrasonically cleaned; fully lubricated; precisely regulated

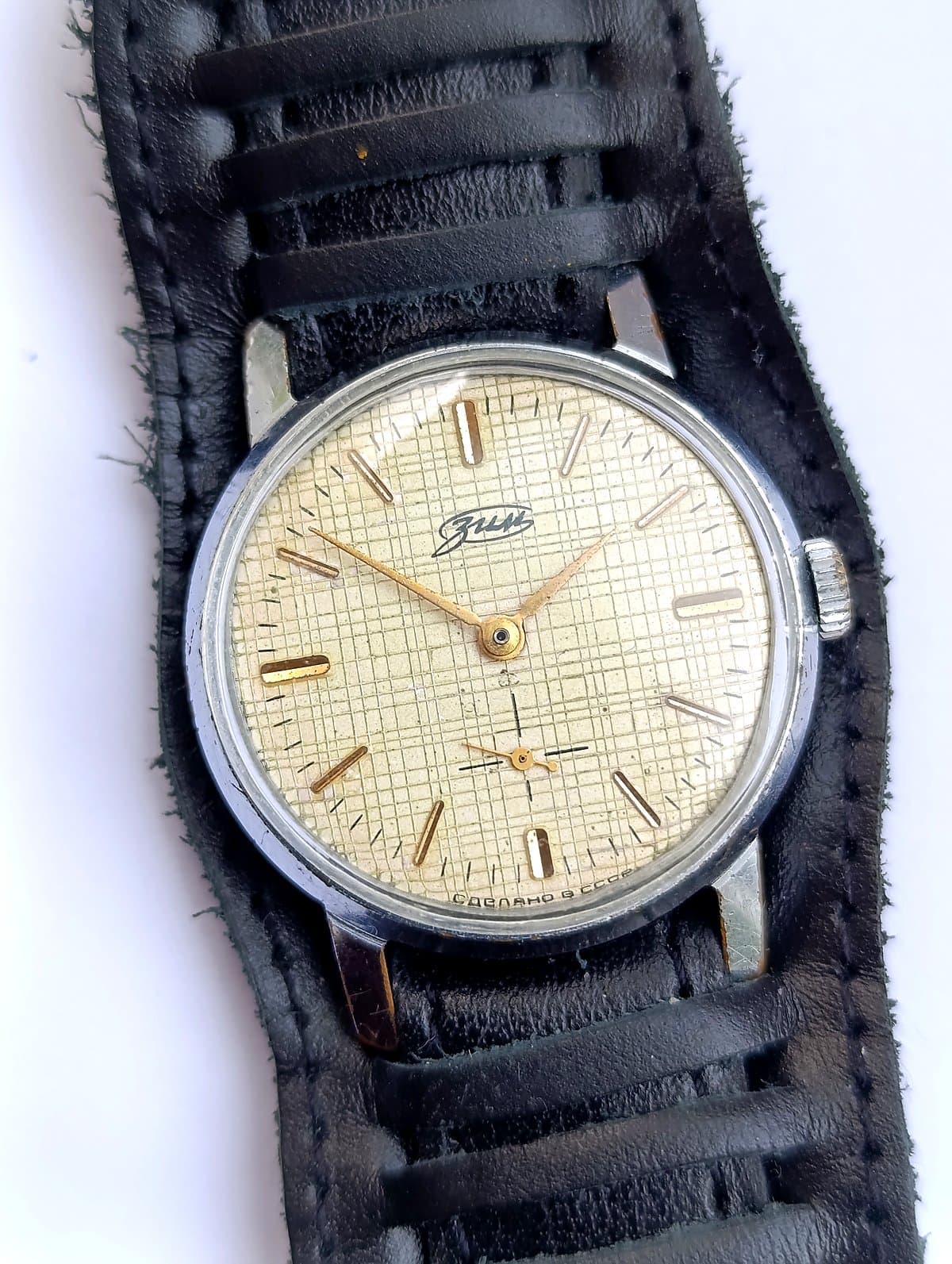

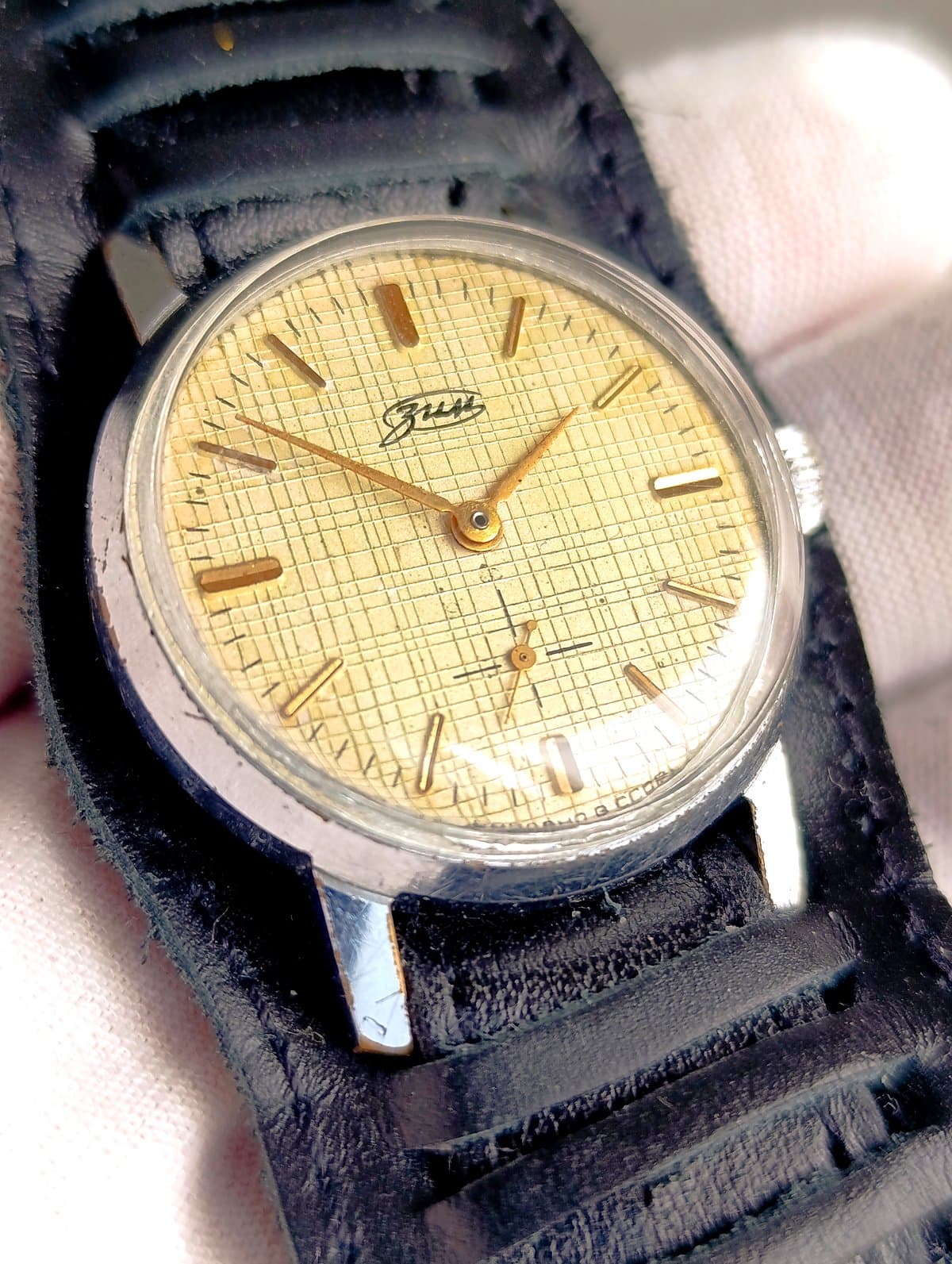

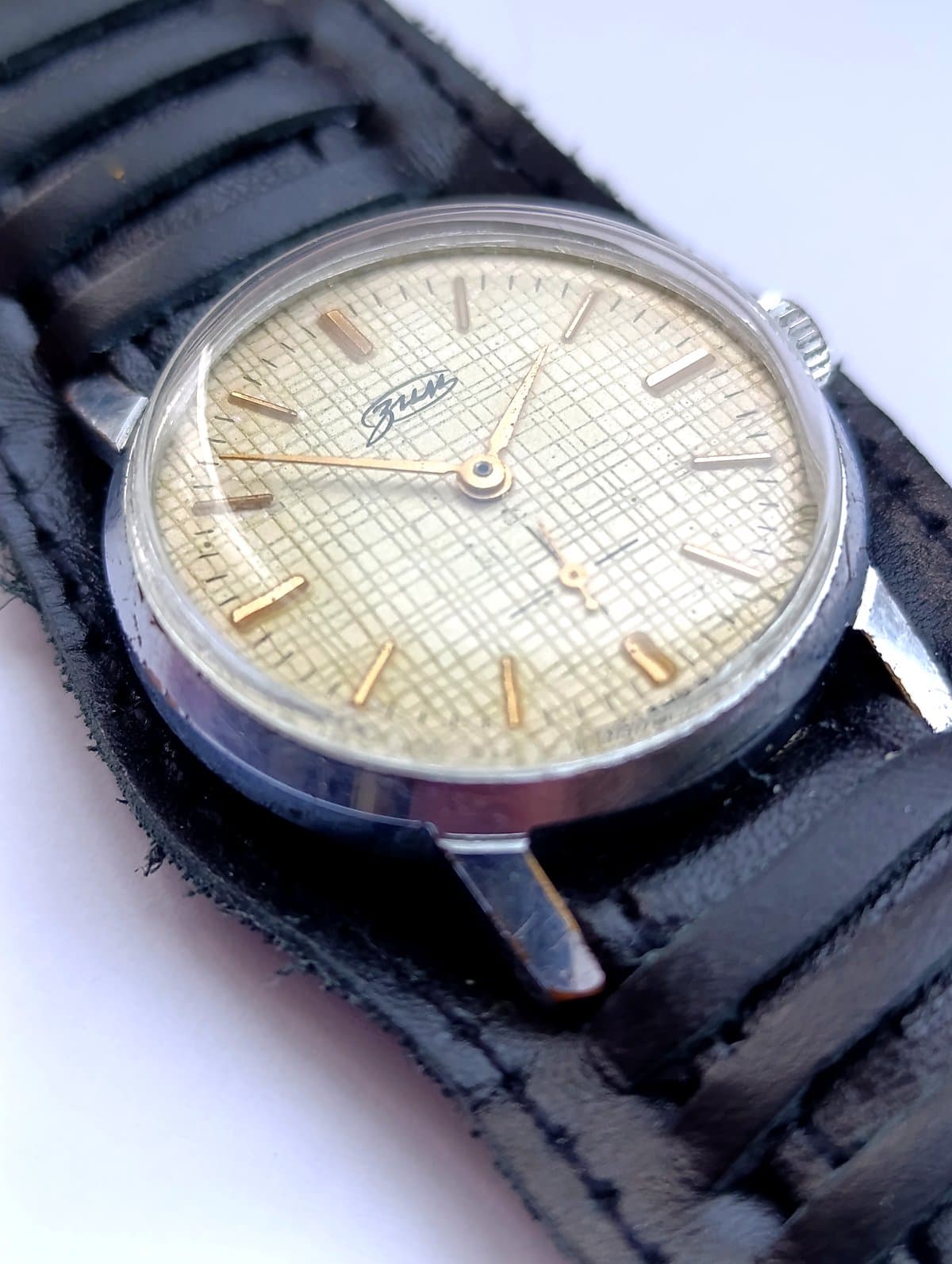

Dial

• Color: Aged champagne / warm cream tone
• Texture: All-over crosshatch (basketweave / waffle) embossed pattern — a rare dial variant for this reference
• Brand signature: Cursive Cyrillic "Зим" script in dark ink, positioned at upper centre

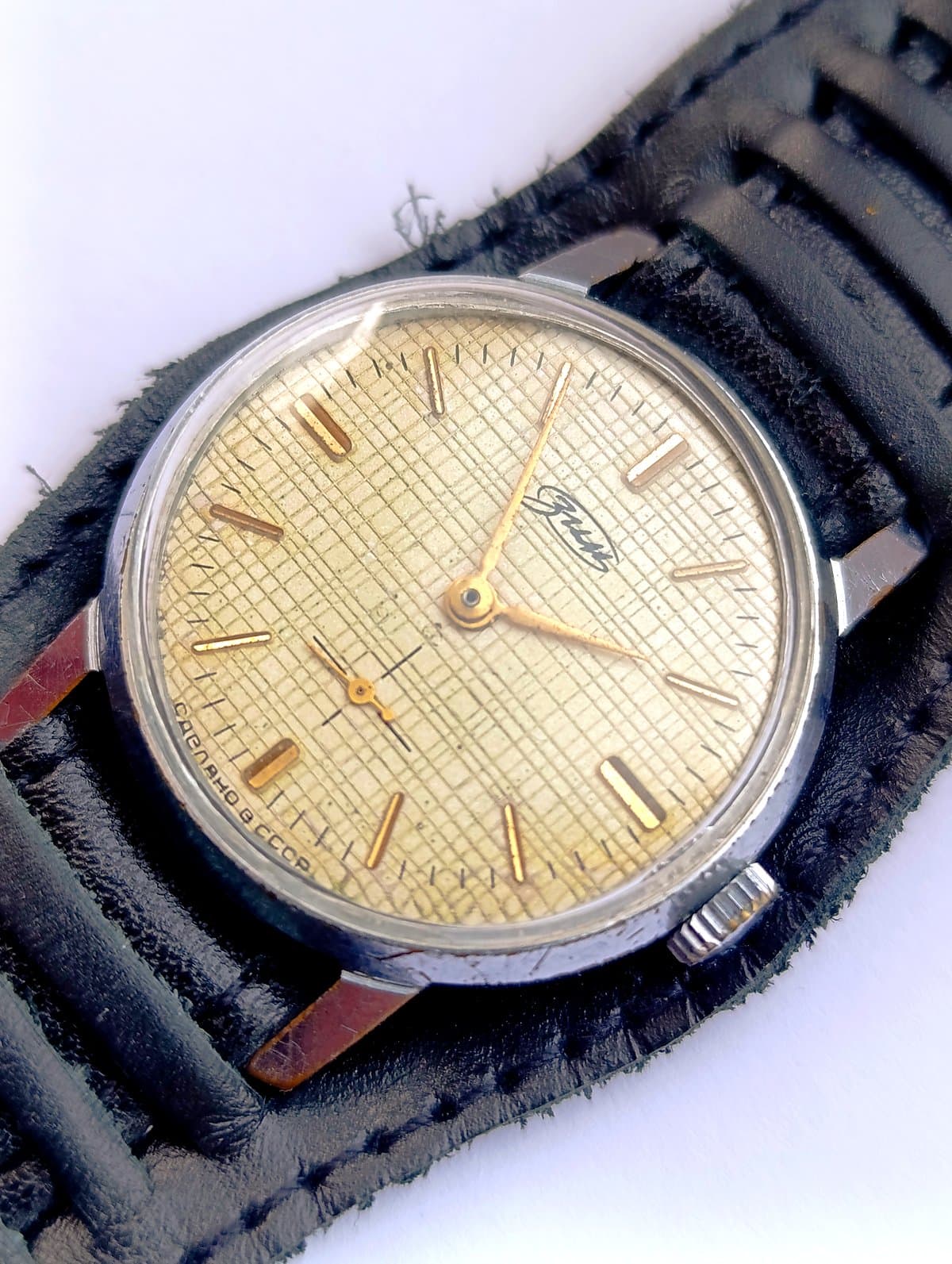

• Origin marking: "Сделано в СССР" (Made in USSR) printed at lower dial perimeter
• Hour markers: Gold-tone polished baton indices; no applied numerals
• Hands: Gold-tone baton-style hour and minute hands; small gold-tone seconds hand at 6 o'clock subdial
• Lume: None present
• Dial condition: Original, unrestored; honest patina consistent with age; no cracks, no re-dial work, no visible repairs observed

Condition Report

• Overall: Good vintage condition consistent with age and use
• Case: Chrome plating shows honest wear; scattered light surface scratches on case middle and lugs; no deep dents or structural damage observed
• Crystal: Acrylic dome crystal present and intact; light surface scratches visible under direct light; can be polished or replaced at low cost
• Dial: Original and intact; all-over crosshatch texture well preserved; gold-tone indices and hands in good matching condition; natural aging patina throughout; no losses to dial surface
• Movement: Fully serviced by a professional watchmaker on 27 February 2026; ready for regular wear
• Strap: Vintage-style cuff wristband in black synthetic material; buckle clasp; not original to the watch
• Originality: Watch presents as fully original and unrestored; no evidence of dial refinishing, hand replacement, or movement substitution

Collector's Notes

The combination of a basketweave-textured dial with uniformly gold-tone baton hands and matching baton indices makes this ZIM 2602 an atypical and visually coherent example. The majority of ZIM watches encountered in today's secondary market feature plain, sunray, or two-tone dials; the all-over embossed crosshatch treatment represents a specific and less frequently seen production variant from the Maslennikov Factory. The "Сделано в СССР" marking printed directly on the dial confirms domestic Soviet manufacture and serves as an indicator of unaltered, authentic origin. The consistent gold-tone palette across dial, hands, and indices gives the watch a unified 1970s Soviet aesthetic that appeals to both dedicated collectors of Soviet horology and broader vintage watch enthusiasts. The movement has been fully serviced by a professional watchmaker in February 2026 and is ready for regular wear. This watch is offered as a collector's piece in honest, original condition reflecting its genuine age.
